In this lab, we are going to make some traffic engineering by modifying the TLOC preference of one of the WAN edge routers at the hub site.

The Lab Topology

By default, the overlay fabric load-share the traffic across all equal paths. In our lab topology, this means that the traffic towards the datacenter is load-shared across all IPsec tunnels between vEdge-4 and vEdges 1 and 2. If we look at the example shown in figure 1, vEdge-4 receives four OMP routes for prefix 172.16.50.0/24.

Traffic Engineering using TLOC Preference
Figure 1. Traffic Engineering using TLOC Preference

Therefore, vEdge-4 knows that it can reach this prefix 172.16.50.0/24 via TLOCs 1,2,3, and 4 if they are in an Active state. A TLOC is active when there is at least one BFD session associated with that TLOC. So at this point, WAN edge router 4 has four equal-cost routes towards 172.16.50.0/24 and is doing an ECMP routing toward the hub. This can be verified using the following command:

vEdge-4# show ip fib 172.16.50.0/24 | tab

     ADDRESS                        OUT     NEXTHOP    NEXTHOP  SA
VPN  FAMILY   ROUTE           PATH  IFNAME  ADDRESS    LABEL    INDEX  TLOC IP      COLOR
-----------------------------------------------------------------------------------------------------
1    ipv4     172.16.50.0/24  1     ipsec   10.50.1.1  1        15     50.50.50.50  mpls
1    ipv4     172.16.50.0/24  2     ipsec   50.1.1.1   1        13     50.50.50.50  public-internet
1    ipv4     172.16.50.0/24  3     ipsec   10.50.2.1  1        14     50.50.50.51  mpls
1    ipv4     172.16.50.0/24  4     ipsec   50.1.2.1   1        16     50.50.50.51  public-internet

You can see that there are 4 equal-cost routes about prefix 172.16.50.0/24 as is shown in figure 1. In order to influence the OMP Best-Path algorithm, we are going to increase the TLOC preference of the TLOCs of vEdge-2 (highlighted in yellow).

vEdge-4# show omp tlocs detail | tab
#some lines and columns are omitted for clarity

ADDRESS
FAMILY   TLOC IP        COLOR            ENCAP  FROM PEER PREFERENCE WEIGHT
---------------------------------------------------------------------------
ipv4     50.50.50.50    mpls             ipsec  1.1.0.3   0          1
         50.50.50.50    public-internet  ipsec  1.1.0.3   0          1
         50.50.50.51    mpls             ipsec  1.1.0.3   0          1
         50.50.50.51    public-internet  ipsec  1.1.0.3   0          1

The goal of this lesson is to create a Centralized Control Policy that will influence the TLOC preference values of vEdge-2's TLOCs. This will then influence the routing decision made by all spoke routers that have vRoutes pointing to vEdge-2's TLOCs.

OMP Best-Path Selection

As we have already learned, WAN edge routers advertise their local network routes to the vSmart controllers using OMP. Depending on the centralized control policy in place and the network topology, the vSmart controllers re-advertise these omp routes back to all other vEdge devices. Having in mind that most sites have multiple vEdge devices, a network can be advertised by multiple vEdge devices. Therefore, the other vEdge devices must perform the following Best-Path Selection algorithm in order to decide which omp route to use for the actual data forwarding:

  1. The Best-Path selection algorithm is performed only against valid OMP routes. Invalid routes are ignored. A route must have a next-hop TLOC that is known and reachable to be valid
  2. Prefer ACTIVE routes over STALE routes. A route is ACTIVE when there is an OMP session in UP state with the destination TLOC.
  3. Select the route with the lower administrative distance (AD) value.
  4. If AD values are equal, select the route with the higher OMP route preference value.
  5. If OMP preference values are equal, select the route with the higher TLOC preference value. (on vEdges only)
  6. If the TLOC preference values are equal, compare the route type and select the route based on the origin in the following order:
    1. Connected
    2. Static
    3. EBGP
    4. OSPF Intra-area
    5. OSPF inter-area
    6. OSPF external
    7. iBGP
    8. Unknown
  7. If everything up to this point is equal, select the route with the lower IGP metric.
  8. If the origin and IGP metric are equal, select the route coming from the node with the highest router ID. (on vEdges only)
  9. If the router IDs are the same, a vEdge router selects the OMP route that has the higher private IP address

To enforce the desired traffic engineering (making traffic destined to 172.16.50.0/24 to prefer the routes via vEdge-2), we are going to manipulate step 4 of the OMP best path algorithm  - we are going to increment the TLOC preference of both TLOCs of vEdge-2 and because all other values up to step 4 are equal, the OMP route from vEdge-2 will be preferred over the OMP routes advertised by vEdge-1.

Inbound Centralized Policy

With an inbound centralized policy, we can modify any given property of a particular vRoute before it goes into the routing table of the vSmart controller. This will then influence the best-path selection and lead to a different output from the best-path algorithm. Remember that the best routes are then advertised downstream to all WAN edge routers. Therefore, any manipulation of the controller's routing table will change the control-plane information across the whole overlay fabric.

Cisco SD-WAN Inbound Centralized Policy
Figure 2. Cisco SD-WAN Inbound Centralized Policy

The goal of this lab is to make sure that traffic from all spoke vEdges enters the hub site through vEdge-2 instead of load-balancing between both vEdge-1 and vEdge-2. We are going to do this by creating an Inbound Centralized Policy that matches the TLOCs originated by the hub vEdges and modifying the TLOC preference values in the following manner. The TLOCs coming from vEdge-1 will be modified to have a TLOC preference of 100 and the ones from vEdge-2 will be modified to have a TLOC preference of 200. Note that the modification of this control plane information will take place before the TLOC routes are inserted into the vSmart's TLOC table.

Let's create a new Centralized Control Policy using the vManage GUI. We go to Configuration > Policies and from the dropdown menu at the right top corner we select Topology.

Creating an inbound Centralized Control Policy - step 1
Creating an inbound Centralized Control Policy - step 1

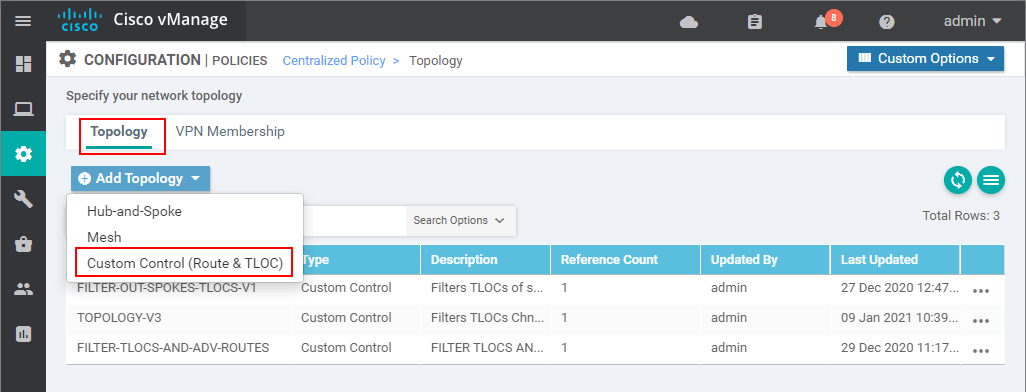

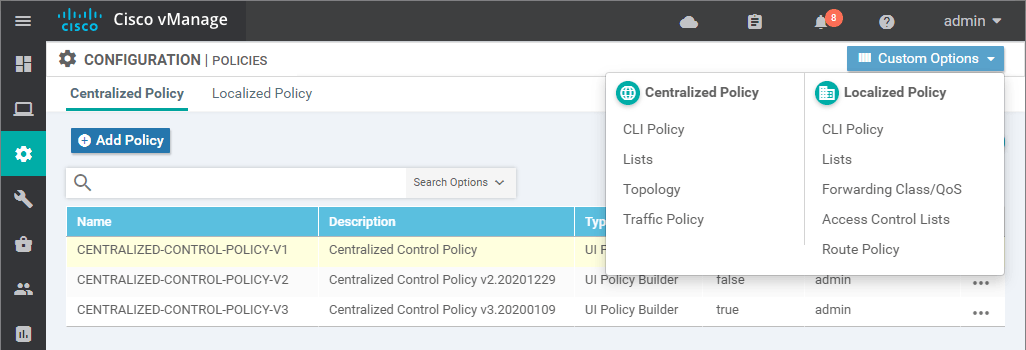

There we are going to see the Topology policies we have created in the previous labs. To create another one we go to Topology > Custom Control (Route & TLOC).

Creating an inbound Centralized Control Policy - step 2
Creating an inbound Centralized Control Policy - step 2

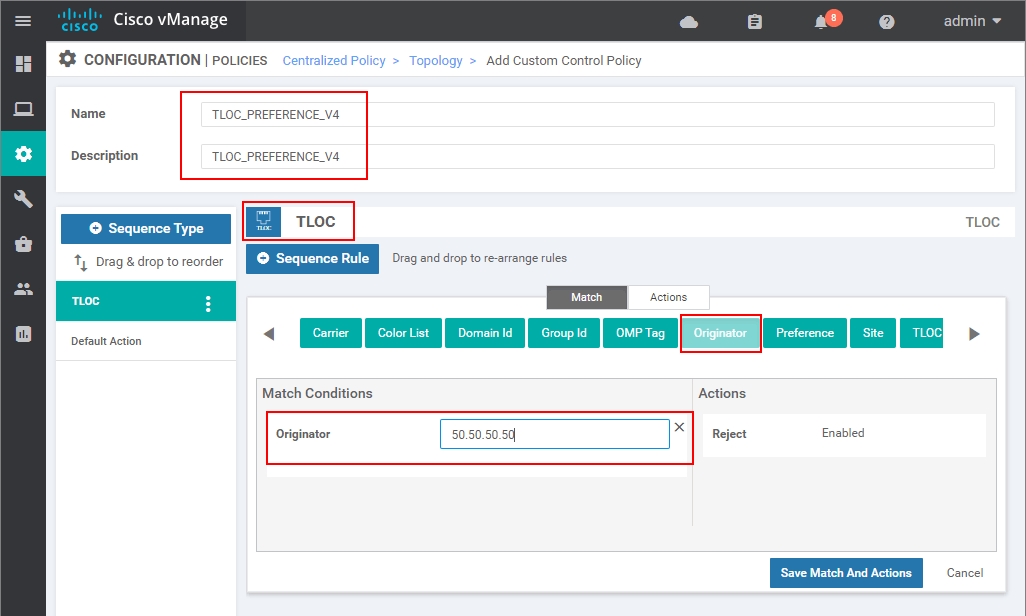

For this policy, we are going to use the name TLOC_PREFERENCE_V4 and the same name for a description. Then we click the Sequence Type button to add a new sequence and select TLOC. Then we are going to match the TLOC routes coming from vEdge-1 by specifying the System-IP address of vEdge-1 as Originator.

Creating an inbound Centralized Control Policy - step 3
Creating an inbound Centralized Control Policy - step 3

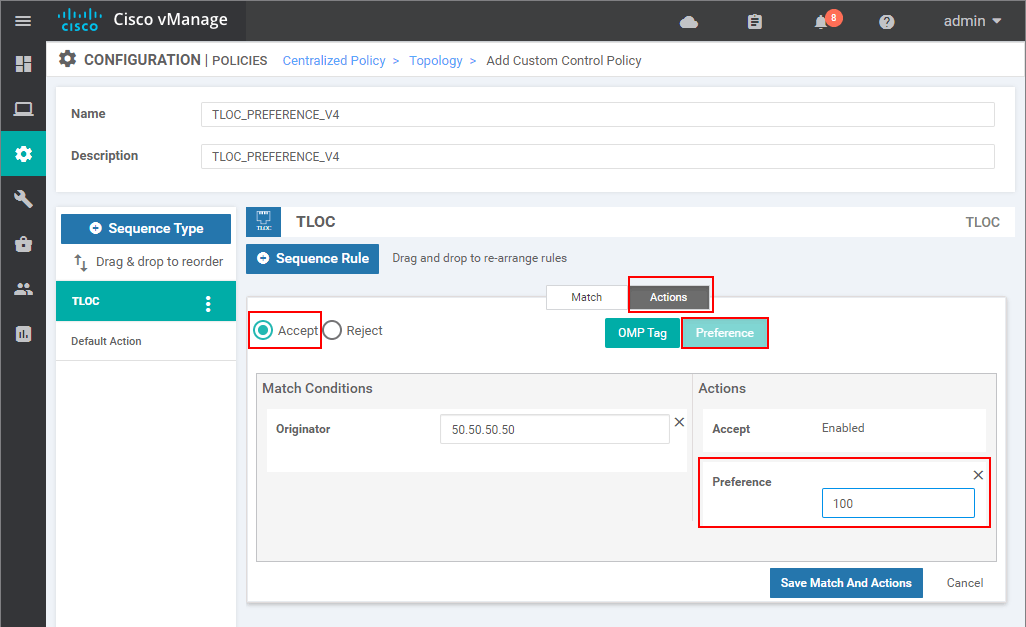

Then we go to the Actions tab and specify the action to be Accept. After that, we set the Preference value to be equal to 100.

Creating an inbound Centralized Control Policy - step 4
Creating an inbound Centralized Control Policy - step 4

At this point, we have created a TLOC sequence that matches the TLOCs of vEdge-1 by using the Originator value of 50.50.50.50. Then we accept these TLOCs and set a preference value of 100.

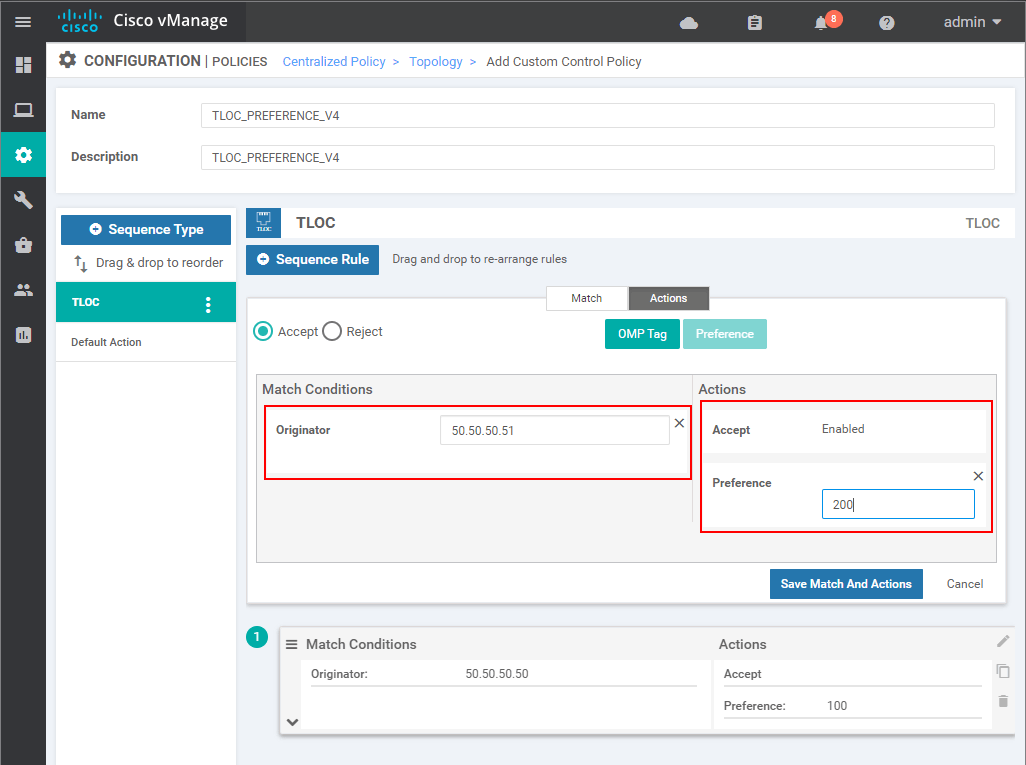

Now we have to do the same for the TLOCs of vEdge-2 but this time we are going to specify a higher TLOC Preference value in order to make all WAN edge routers prefer vEdge-2 as an entry point for the hub site. We add another Sequence of type TLOC and specify the System-IP address of vEdge-2 50.50.50.51. Then on the Actions tab we accept these TLOCs and set the Preference to be 200 (higher than the one specified for vEdge-1's TLOCs)

Creating an inbound Centralized Control Policy - step 5
Creating an inbound Centralized Control Policy - step 5

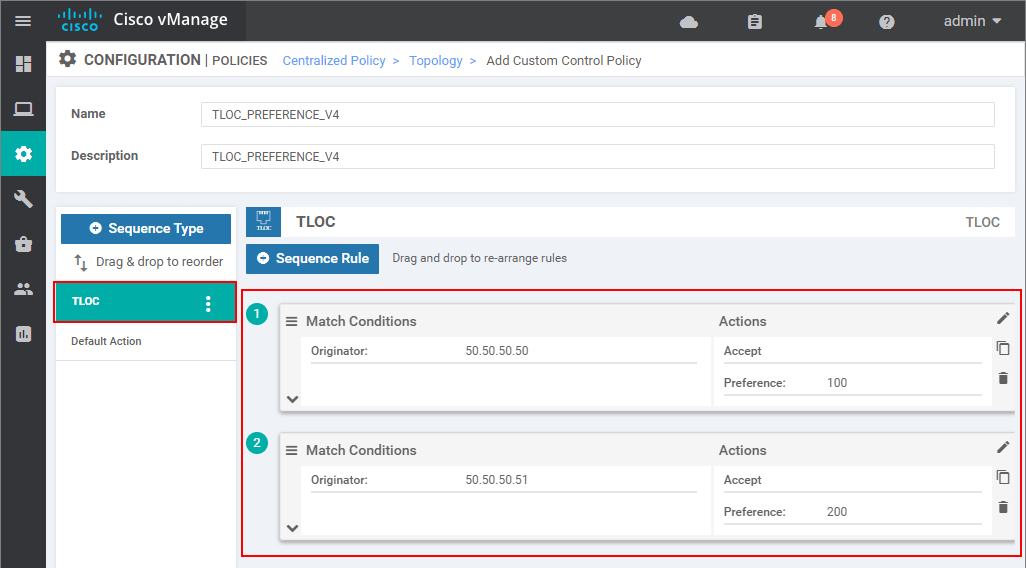

At this point, we must have the following TLOC sequences as shown in the screenshot below:

Creating an inbound Centralized Control Policy - step 6
Creating an inbound Centralized Control Policy - step 6

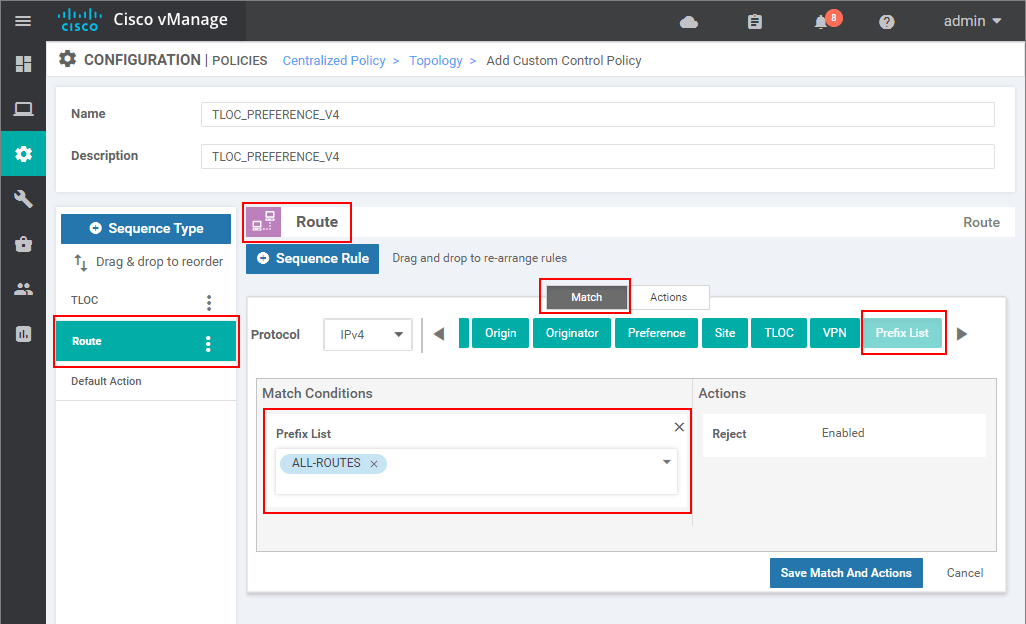

Now we must add another sequence to the policy, but this time it would be of type Route. There we must match the pre-defined ALL-ROUTES prefix-list and then specify the action to be Accept. This basically tells the controller to accept all vRoutes because otherwise they will be rejected by the default action at the end which is Reject.

Creating an inbound Centralized Control Policy - step 7
Creating an inbound Centralized Control Policy - step 7

On the Actions tab we click on the Accept radio button.

Creating an inbound Centralized Control Policy - step 8
Creating an inbound Centralized Control Policy - step 8

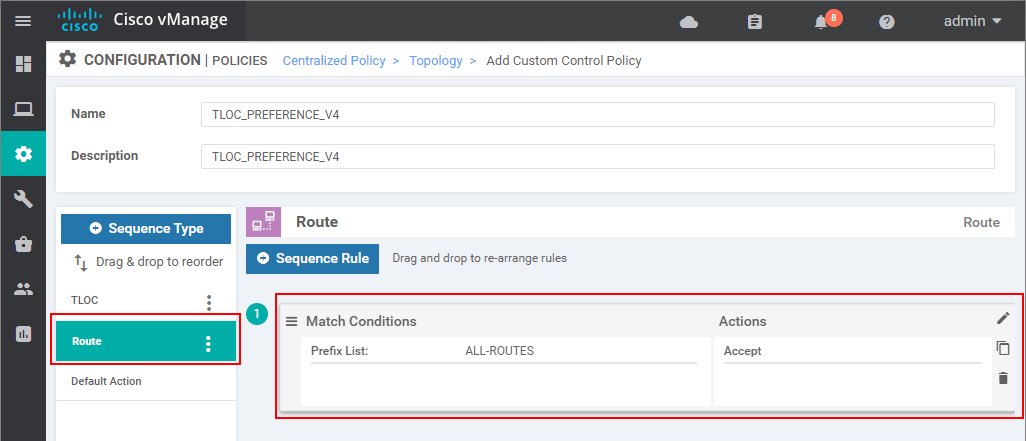

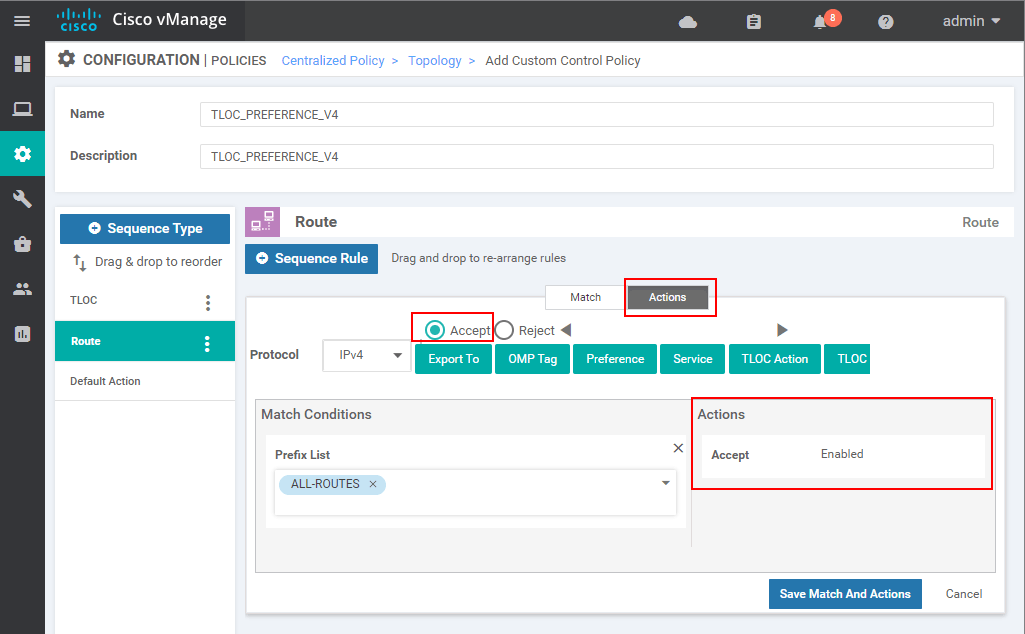

In the end, we must have the following Route Sequence as shown in the screenshot below:

Creating an inbound Centralized Control Policy - step 9
Creating an inbound Centralized Control Policy - step 9

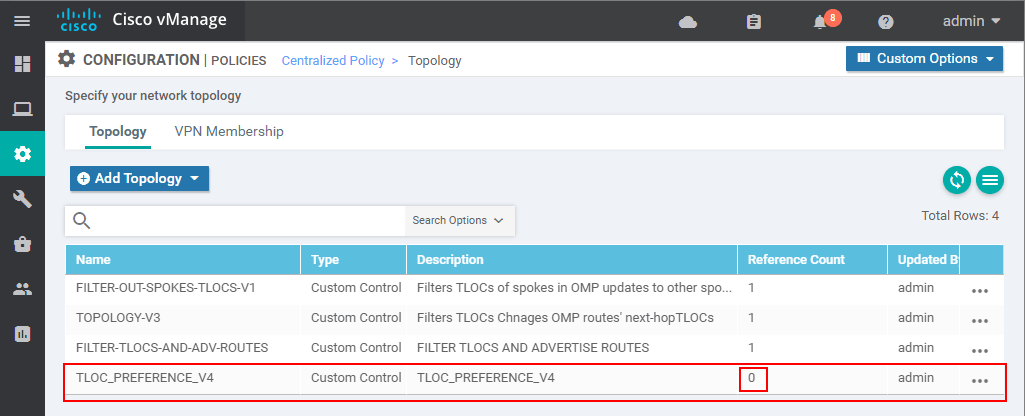

Now our new topology policy is created. However, you can see that the Reference Count is still zero, which means that it is not used in any Centralized Policy at the moment.

Creating an inbound Centralized Control Policy - step 10
Creating an inbound Centralized Control Policy - step 10

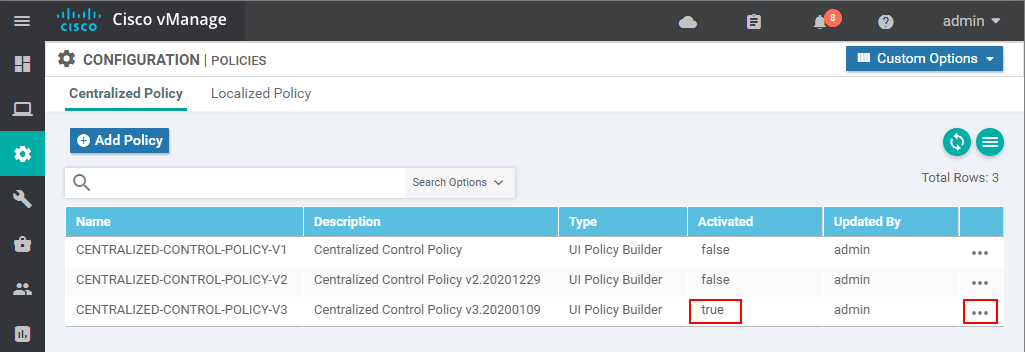

If we go back to Configuration > Policies, we can see that the current active Policy is CENTRALIZED-CONTROL-POLICY-V3 (the one created in the previous lesson). As we have already said many times, we cannot edit a Centralized Policy while it is activated on the vSmart controllers and in effect. That is why we are going to just copy the policy into one with another name and will just change the Topology Definition, leaving all other settings as they are.

Creating an inbound Centralized Control Policy - step 11
Creating an inbound Centralized Control Policy - step 11

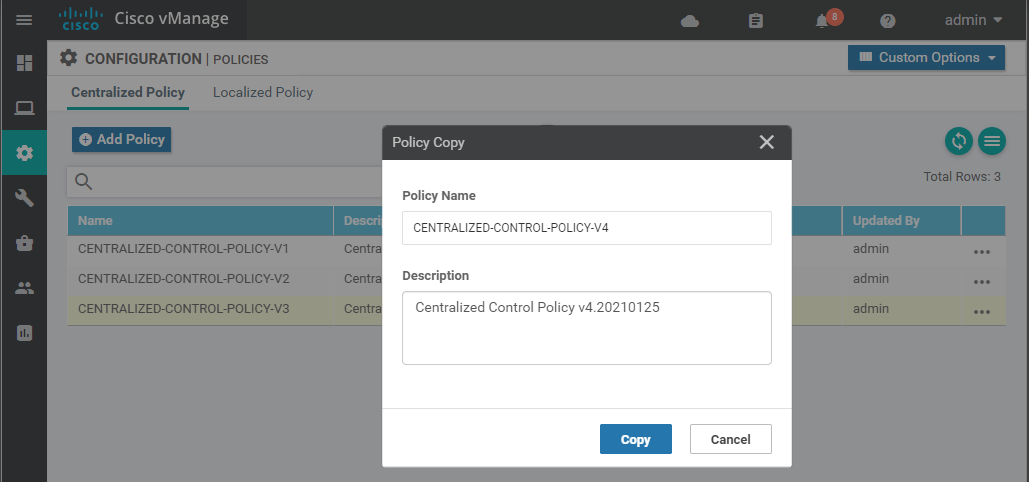

We go to the more options button, select copy, and specify the name CENTRALIZED-CONTROL-POLICY-V4 for the new policy.

Creating an inbound Centralized Control Policy - step 12
Creating an inbound Centralized Control Policy - step 12

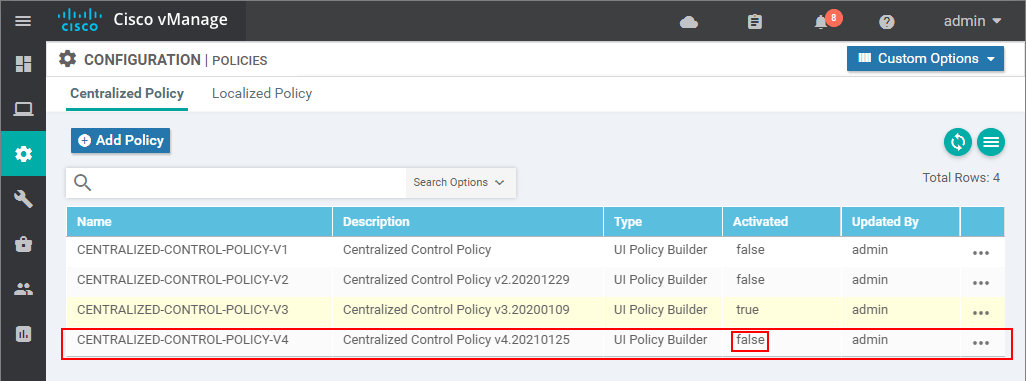

Once it is created, you can see that it is still not Activated. We will need to edit it and point to the Topology definition that we have created.

Creating an inbound Centralized Control Policy - step 13
Creating an inbound Centralized Control Policy - step 13

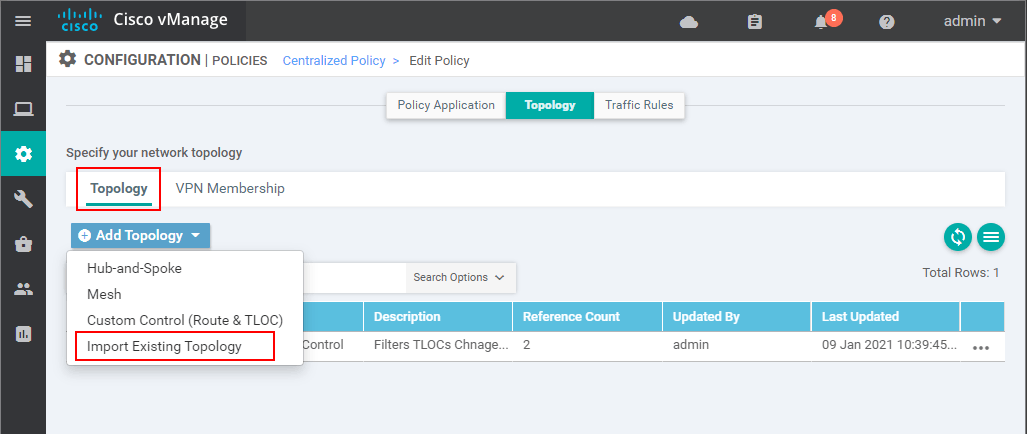

We go to Edit > Topology and then on the Add Topology dropdown we select Import Existing Topology.

Creating an inbound Centralized Control Policy - step 14
Creating an inbound Centralized Control Policy - step 14

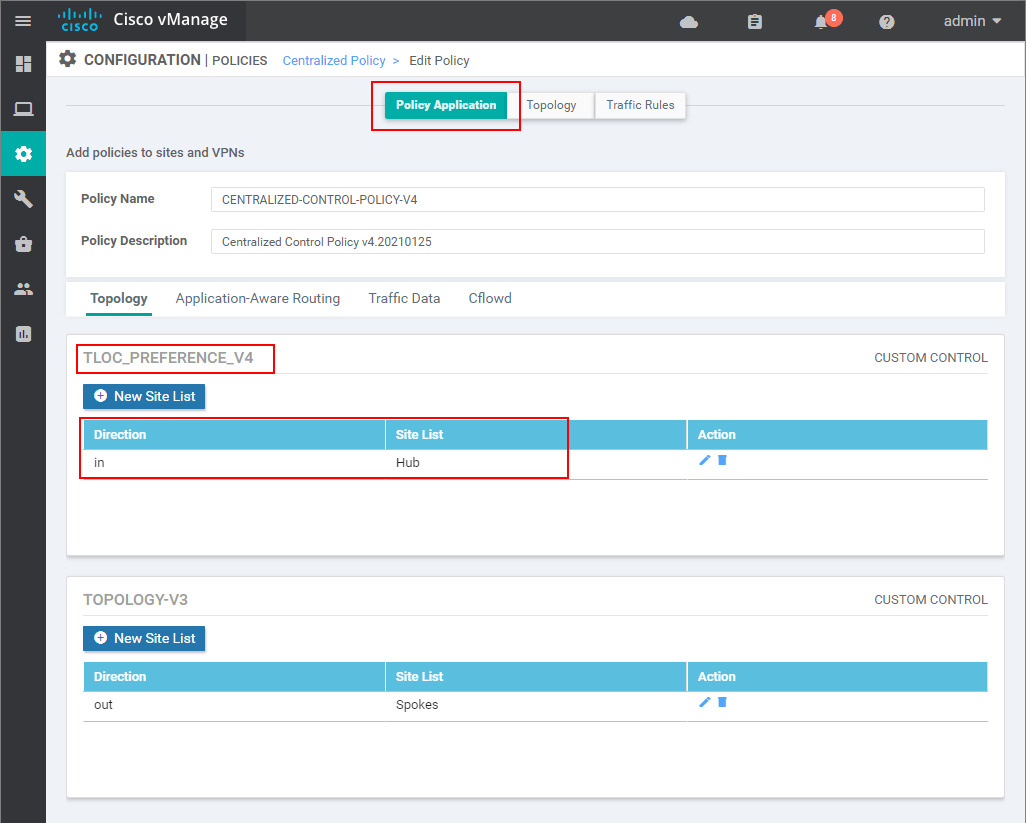

In there, we select the one we created - TLOC_PREFERENCE_V4. After that, we go back to the Policy Application and apply the TLOC_PREFERENCE_V4 to site-list Hub in inbound direction as shown in the screenshot below:

Creating an inbound Centralized Control Policy - step 15
Creating an inbound Centralized Control Policy - step 15

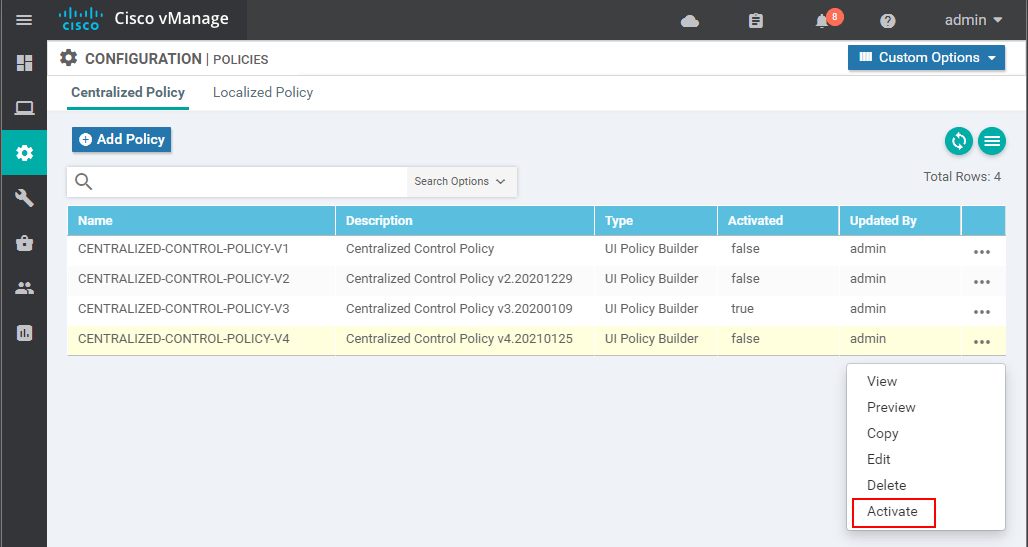

Then we go back to Configuration > Policies and Activate the newest one named v4.

Creating an inbound Centralized Control Policy - step 17
Creating an inbound Centralized Control Policy - step 17

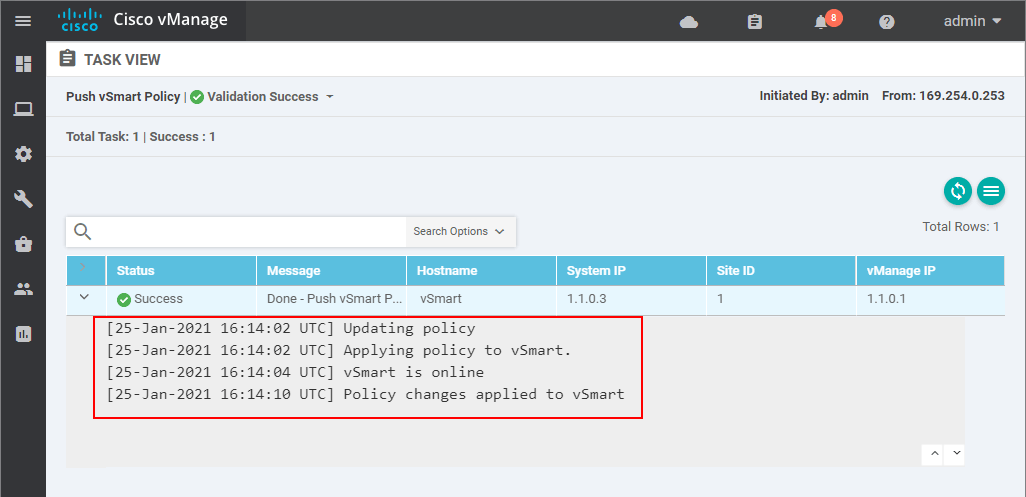

If everything has gone to plan, the activation should be successful.

Creating an inbound Centralized Control Policy - step 16
Creating an inbound Centralized Control Policy - step 16

Verifications

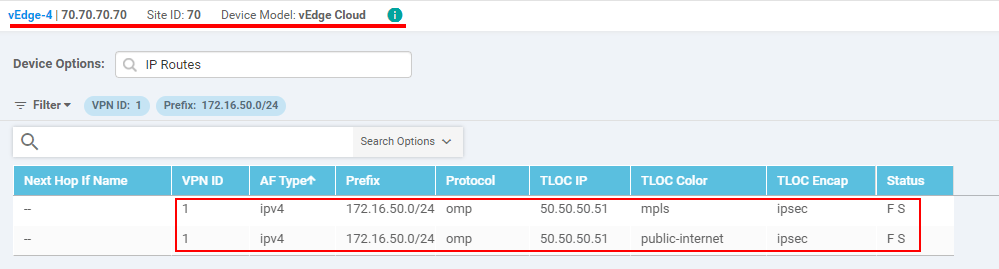

Now if we check the routing information of vEdge-4 about the prefix 172.16.50.0/24, we can see that it prefers the omp routes that have a next-hop TLOC address of vEdge-2 because the vEdge-2's TLOCs have a higher preference that the ones of vEdge-1.

Creating an inbound Centralized Control Policy - step 18
vEdge4 OMP route table after the inbound policy has been applied

This can be verified using the CLI as well with the following command:

vEdge-4# show ip route vpn 1
Codes Proto-sub-type:
  IA -> ospf-intra-area, IE -> ospf-inter-area,
  E1 -> ospf-external1, E2 -> ospf-external2,
  N1 -> ospf-nssa-external1, N2 -> ospf-nssa-external2,
  e -> bgp-external, i -> bgp-internal
Codes Status flags:
  F -> fib, S -> selected, I -> inactive,
  B -> blackhole, R -> recursive


VPN PREFIX           PROTOCOL  TLOC IP       COLOR            ENCAP  STATUS
---------------------------------------------------------------------------
1   172.16.50.0/24   omp       50.50.50.51   mpls             ipsec  F,S
1   172.16.50.0/24   omp       50.50.50.51   public-internet  ipsec  F,S

And the ultimate verification step would be to actually trace the traffic path using a traceroute. You can see that the traffic enters the data center via vEdge-2, which is the desired outcome.

SITE-70#traceroute vrf VPN1 172.16.50.10
Type escape sequence to abort.
Tracing the route to 172.16.50.10
VRF info: (vrf in name/id, vrf out name/id)
  1 172.16.70.1 21 msec 19 msec 21 msec -> vEdge-4
  2 172.16.50.3 42 msec 38 msec 51 msec -> vEdge-2
  3 172.16.50.10 75 msec 75 msec *  -> SITE-50-VPN5
SITE-70#
