Recap of the previous lab

In lab 2, we have created a Centralized Policy named CENTRALIZED-CONTROL-POLICY-V2 using the vManage GUI. In that policy, we have created a Topology definition that matches the Transport Locators of the hub site ( based on the site-id of the hub) and accepts them, all other TLOCs are rejected by the default action at the end which is Reject. In another sequence, we matched all omp routes and accepted them. After that, we applied this policy in an outbound direction to the spoke sites. Note that the out direction is from the perspective of the OMP updates of the vSmart controller to the WAN edge devices.

Centralized Policy used in Lab 2
Figure 1. Centralized Policy used in Lab 2

So what are the results of this Centralized policy:

  • Due to sequence 1 of the topology definition - the vEdges at the spoke sites receive only the transport locators (TLOCs) of the hub site. Therefore, they can only make overlay tunnels to the hub's vEdges which basically creates a hub-and-spoke overlay fabric.
  • Due to sequence 11 -  the vEdges at the spoke sites receive all omp routes from all sites. This means that each WAN edge router at the spoke sites receives omp routes from all other spoke vEdges. These omp routes have next-hop TLOC attributes pointing to the originating spoke vEdges. However, spoke vEdges do not know the transport locators of other spokes because spokes' TLOCs have been filtered out in sequence 1. That's is why the omp routes from other spokes have a status Invalid and Unresolved and are not installed in the routing table.

To enable spoke-to-spoke reachability, we have injected a default route from the hub's vEdges as a workaround to the issue created by sequence 11 of the centralized policy.

Centralized Policy in out direction to spokes
Centralized Policy from lab 2 in out direction to spokes

In this lab lesson, we are going to solve the issue of the Invalid routes by manipulating the omp route advertisements towards the spoke routers. Each OMP route that is advertised from the vSmart controllers has the following attributes.

    Attributes:
     originator       60.60.60.60
     type             installed
     tloc             60.60.60.60, lte, ipsec
     ultimate-tloc    not set
     domain-id        not set
     overlay-id        1
     site-id          60
     preference       not set
     tag              not set
     origin-proto     connected
     origin-metric    0
     as-path          not set
     unknown-attr-len not set

Typically, each attribute could be used as a match criteria and each one could also be modified with a set action. In this lab, we are going to manipulate the TLOC attribute of the routes that are advertised to the spoke vEdges. Because the spokes only know about the TLOCs of the hub site, we are going to change the tloc attributes of the omp routes to point to the available hub's TLOCs.

Modifying OMP routes with TLOC lists

Before we begin with this lab, let's first have a look at our topology diagram that we use for this Cisco SD-WAN Deep Dive series.

Cisco SD-WAN Deep-Dive - Main Lab Topology
Figure 3. Cisco SD-WAN Deep-Dive - Main Lab Topology

If we log into vManage and enter the Policy Wizard in Configuration > Policies we can see the Centralized Policy we have created in the last lesson - "CENTRALIZED-CONTROL-POLICY-V2" is currently active. As we learned in the previous lab lesson, centralized policies could not be edited while active. Therefore, we are going to create create a new version of the policy reusing some parts of the current one and when we are done, we are going to push the new version to vSmart.

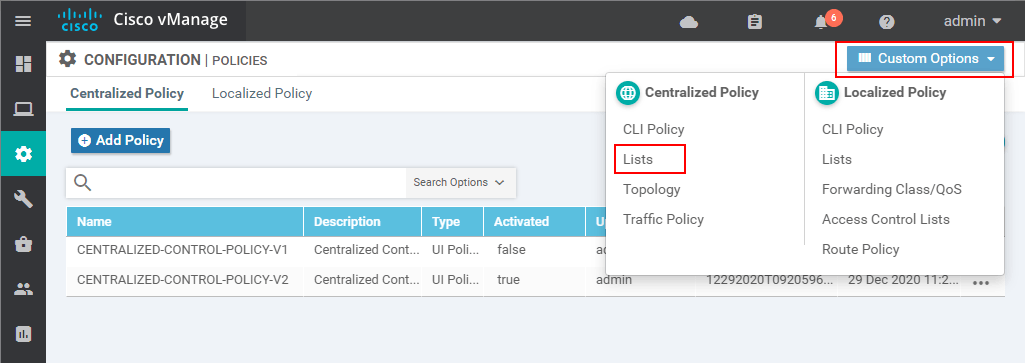

For this lab, we are going to need a new list that matches the transport locators of the hub's vEdge routers. Let's create a new list called HUB-TLOCS by going to Custom Options > Lists.

Enabling spoke-to-spoke communication - Step 1
Enabling spoke-to-spoke communication - Step 1

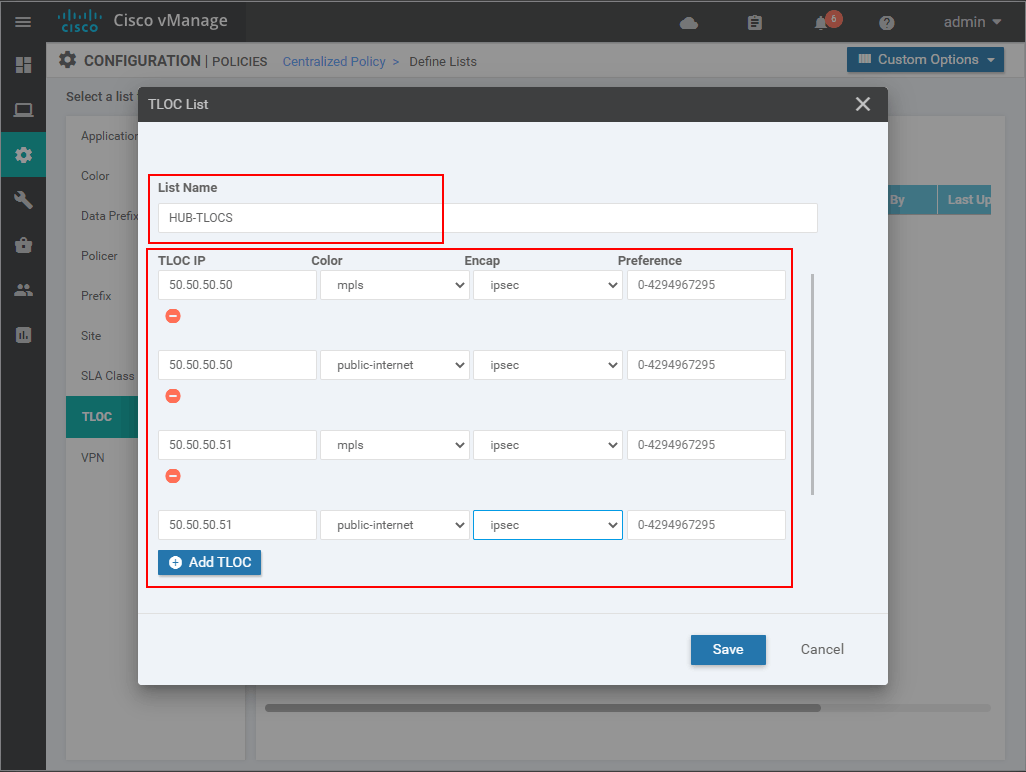

In there, we select TLOC and enter the name of the list. After that, we specify the four transport locators that we have in the hub site. Note that a TLOC consists of three tuples of information - (TLOC IP, Color, Encap). The TLOC IP is typically the system IP address of the vEdge router.  Based on personal experience, I can say that it is a common mistake to use the IP address of the interface connected to the transport network. I had personally done this many times before. For example, if you look at figure 3, it is a common mistake to use the TLOC (10.50.1.1, mpls, ipsec) for the transport locator of vEdge-1 that identifies the connection to the MPLS cloud. However, the correct TLOC tuple is (50.50.50.50., mpls, ipsec).

Enabling spoke-to-spoke communication - Step 2
Enabling spoke-to-spoke communication - Step 2

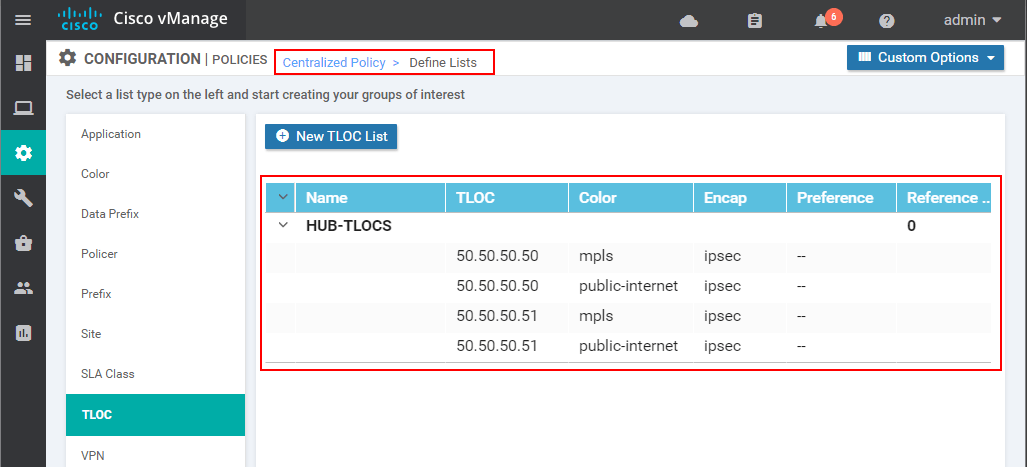

Once the HUB-TLOCS list is created, note that the Reference Count is 0, because it is not used anywhere at the moment.

Enabling spoke-to-spoke communication - Step 3
Enabling spoke-to-spoke communication - Step 3

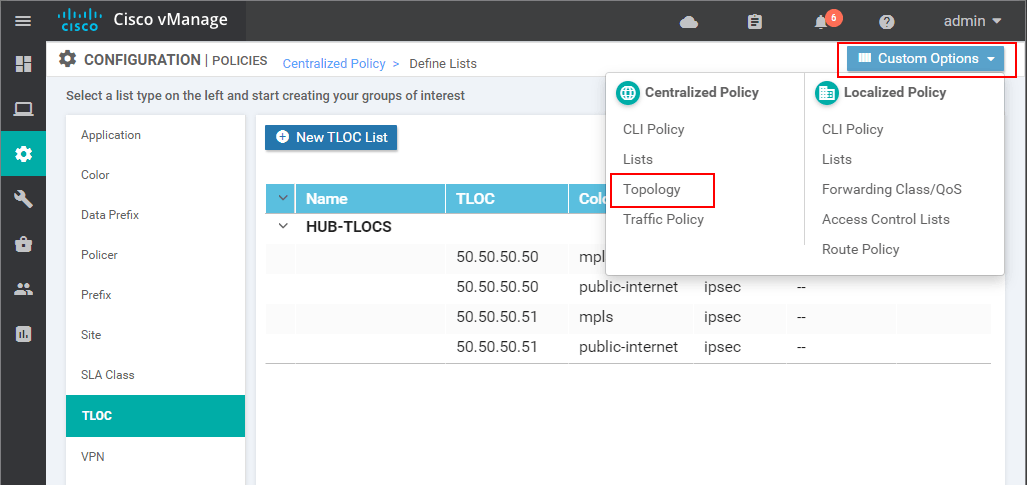

Now we need to create the Topology definition that will change the next-hop TLOC attributes of the OMP routes advertisements to the spokes. Let's reuse the topology policy that is currently in use. To do this, we copy the existing one using a different name and we modify it as per the requirements.

Go to Custom Options > Topology.

Enabling spoke-to-spoke communication - Step 4
Enabling spoke-to-spoke communication - Step 4

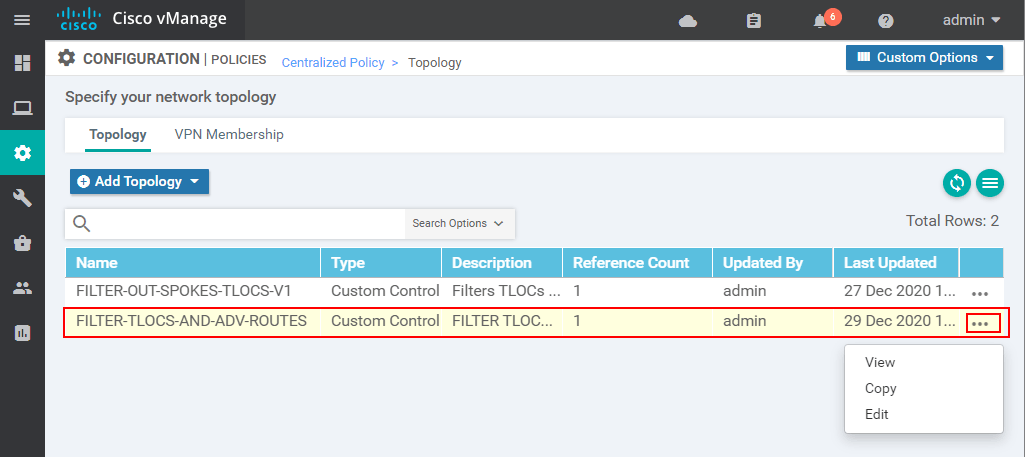

In there we must see that policy FILTER-TLOCS-AND-ADV-ROUTES that we have created in the previous lab lesson. Note that the Reference Count is 1 because it is currently in use. To reuse it, we make a copy of it with a different name.

Enabling spoke-to-spoke communication - Step 5
Enabling spoke-to-spoke communication - Step 5

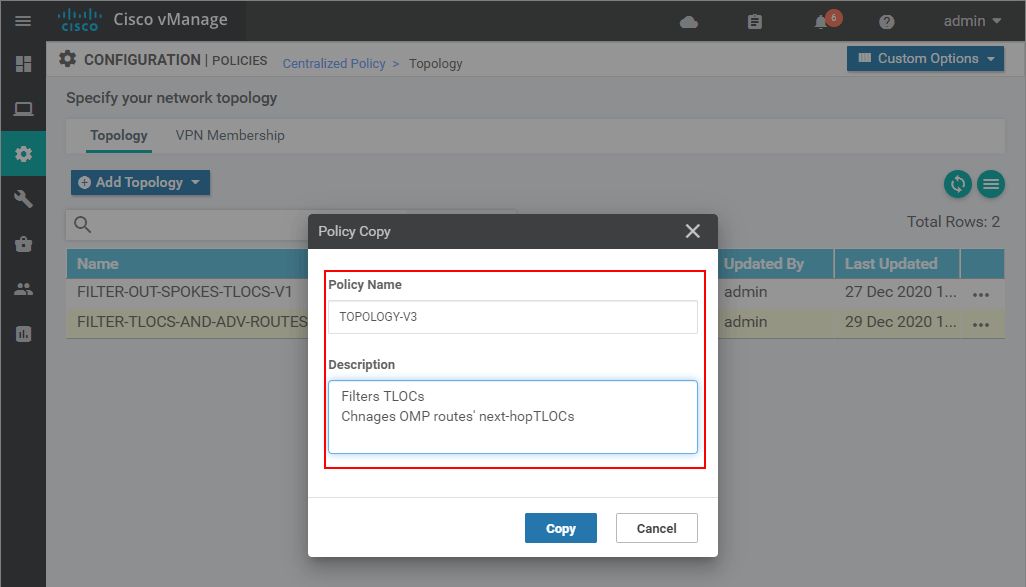

For this lab lesson, we are going to use the name TOPOLOGY-V3.

Enabling spoke-to-spoke communication - Step 1
Enabling spoke-to-spoke communication - Step 6

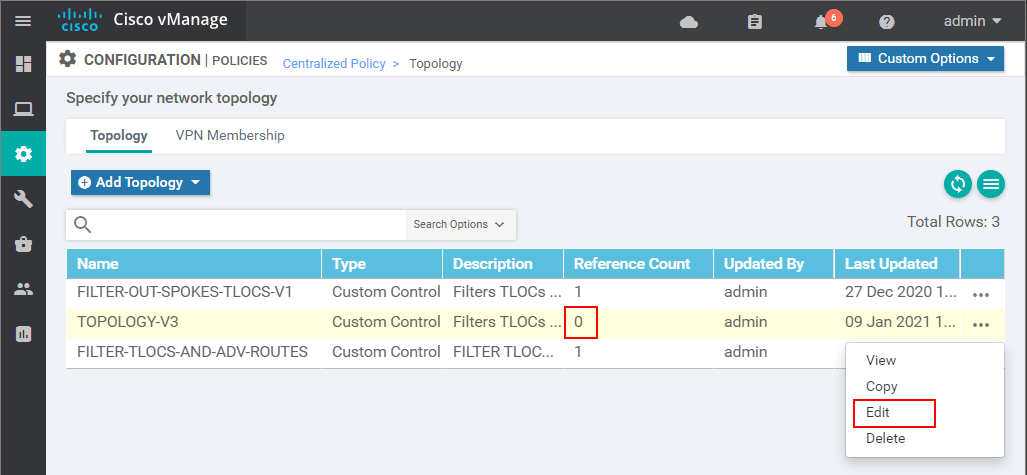

Now you can see that the new topology policy has a Reference Count of 0 meaning that it is not used anywhere. Therefore, we can safely edit it without touching anything in production. From the additional options, we select Edit.

Enabling spoke-to-spoke communication - Step 7
Enabling spoke-to-spoke communication - Step 7

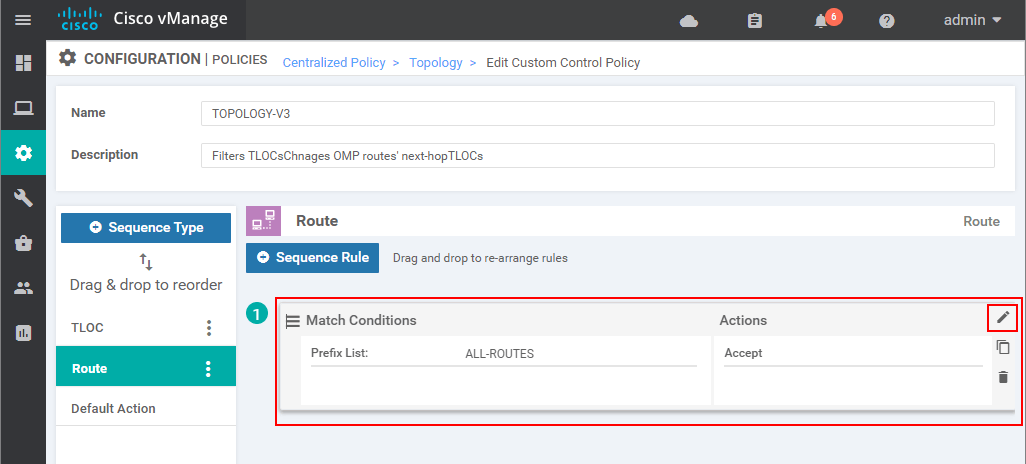

In there on the left side, we can see the two sequence definitions that we have created in the previous lab. If we select the Route sequence type, we can see that it matches the ALL-ROUTES prefix-list and Accepts it. However, as we said earlier, we'd like to not only accept the routes but also to modify the next-hop TLOC attributes. That is why we are going to edit this match-action sequence.

Enabling spoke-to-spoke communication - Step 8
Enabling spoke-to-spoke communication - Step 8

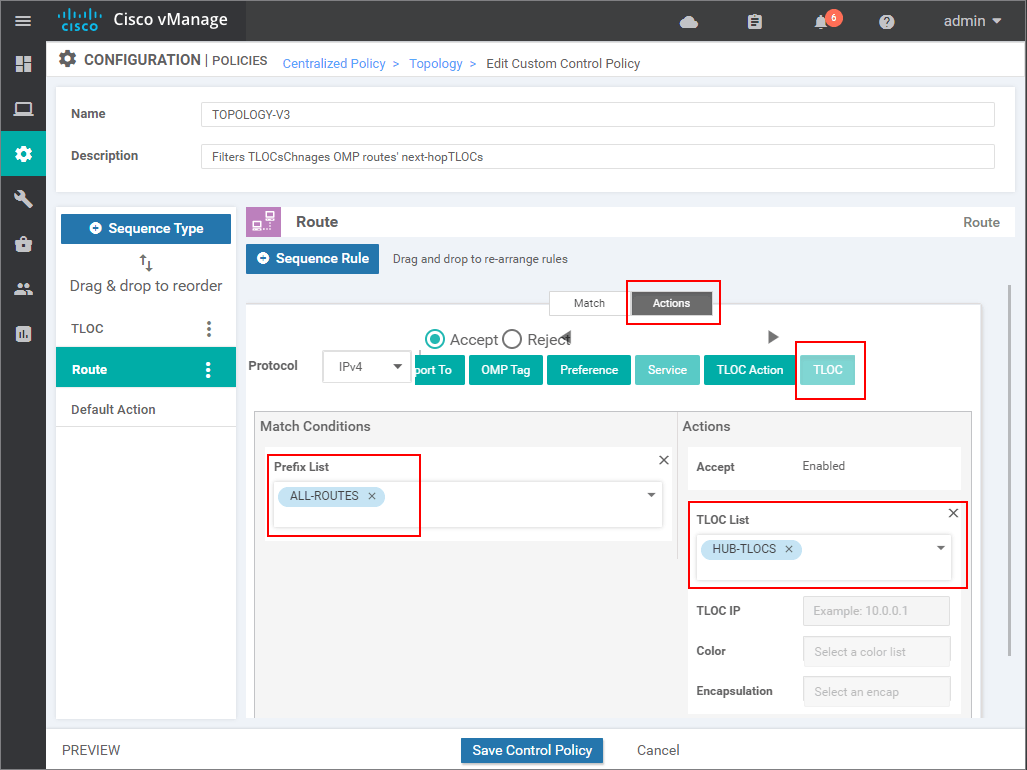

There we go to the Actions tab > TLOC and select the HUB-TLOCS list that we defined earlier.  Then we save the policy.

Enabling spoke-to-spoke communication - Step 9
Enabling spoke-to-spoke communication - Step 9

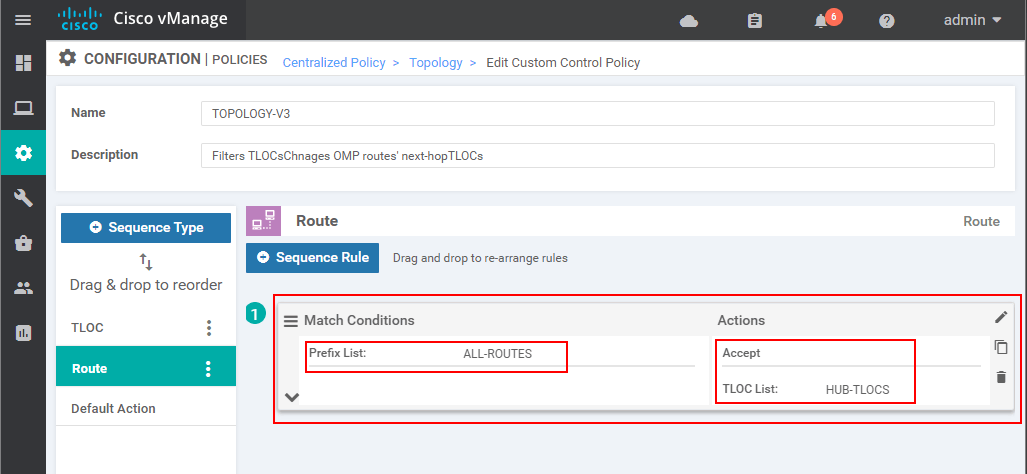

In the end, we should have a match condition that matches the pre-defined prefix-list ALL-ROUTES and the applied action should be the TLOC list HUB-TLOCS.

Enabling spoke-to-spoke communication - Step 10
Enabling spoke-to-spoke communication - Step 10

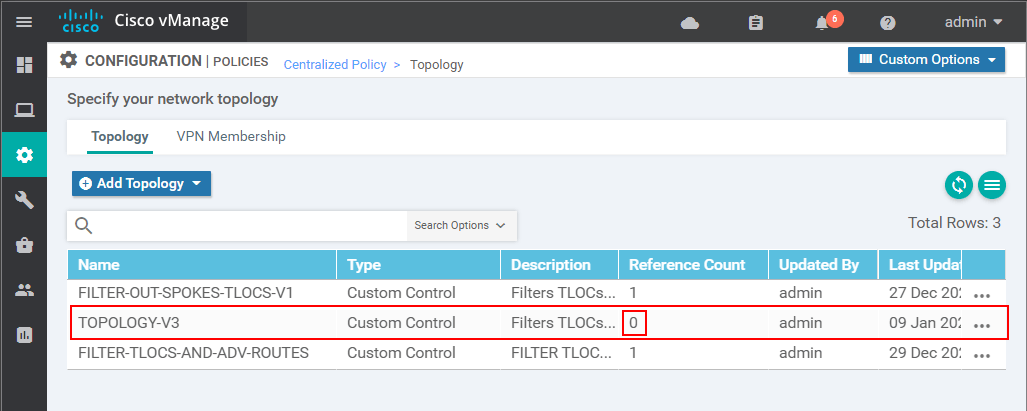

At this point, the new Topology definition is done but obviously, it is still not used anywhere.

Enabling spoke-to-spoke communication - Step 11
Enabling spoke-to-spoke communication - Step 11

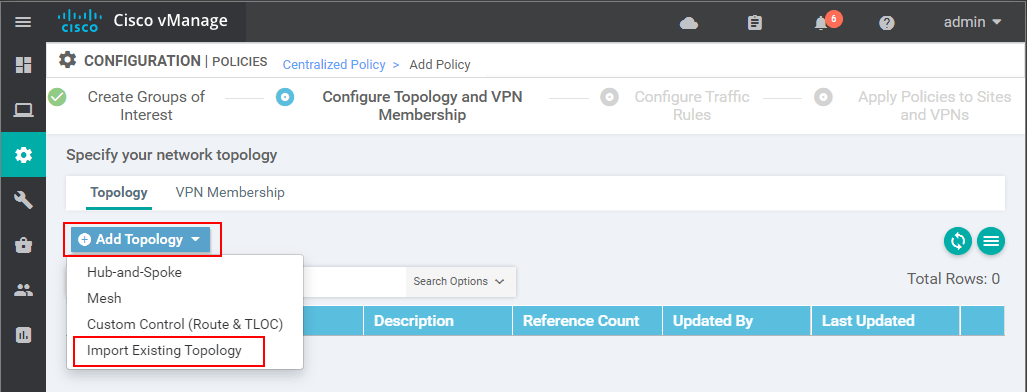

At this point, all required parts for our new Centralized Control Policy are made so we can go ahead and define the policy through the wizard. We go to Policies > Add Policy. In there, we skip the first page "Create Groups of Interest" because we have already defined all required lists. On the next page "Configure Topology and VPN Membership" we go to Add Topology > Import Existing Topology because we have already defined a Topology policy (named TOPOLOGY-V3).



Enabling spoke-to-spoke communication - Step 12
Enabling spoke-to-spoke communication - Step 12

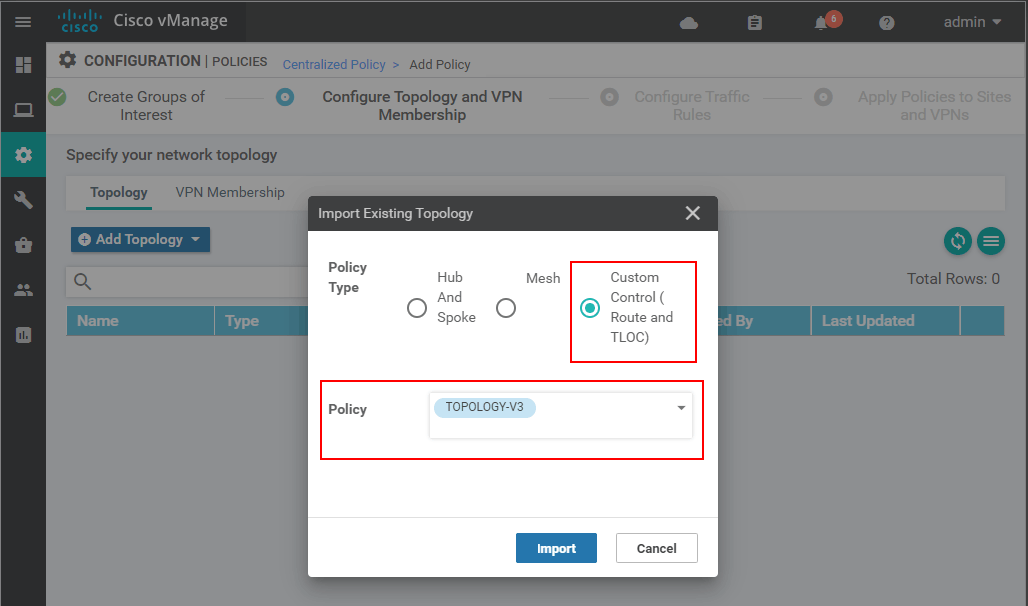

In the pop-up window, we go to Custom Control (Route and TLOC) and select the policy have defined earlier - TOPOLOGY-V3 from the drop-down menu.

Enabling spoke-to-spoke communication - Step 13
Enabling spoke-to-spoke communication - Step 13

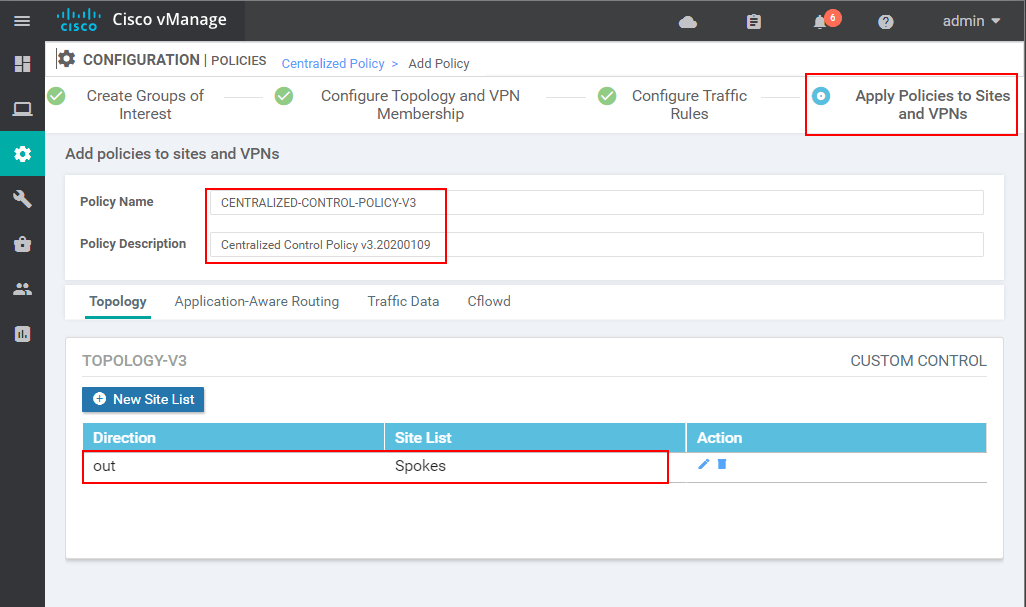

Then we skip the next page "Configure Traffic Rules" and end up on the "Apply Policies to Sites and VPNs" page. In there, we specify a name and description of the policy. As we said in the previous lessons, it is a general rule of thumb to use all capital letters for the name and always include some kind of a version number.

After that apply the policy in an outbound direction to the spokes by selecting the site-list SPOKES.

Enabling spoke-to-spoke communication - Step 14
Enabling spoke-to-spoke communication - Step 14

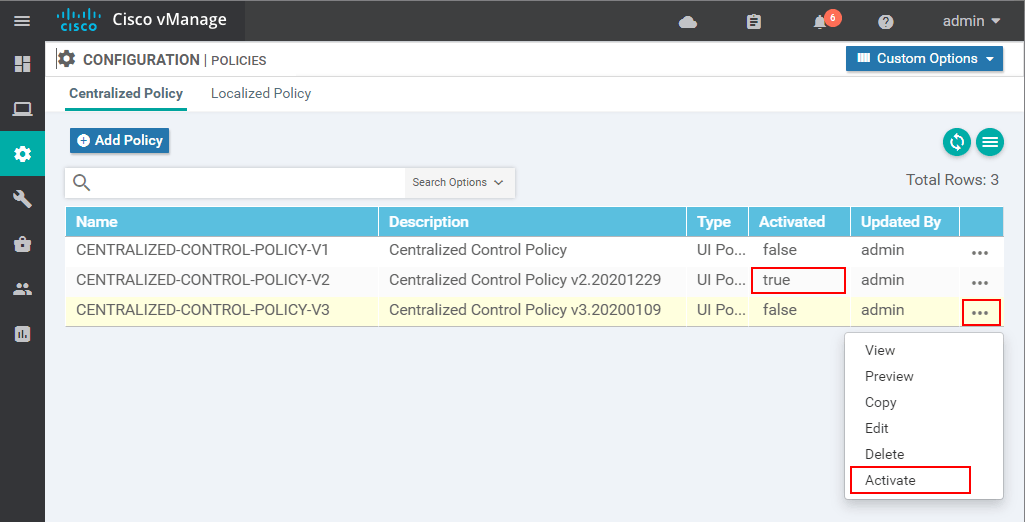

Now you can see that we have a new Centralized Control policy created that has a V3 at the end of the name. Note that it is not activated though. Still, the policy that we have created in the previous lesson is active. To activate the new one we go to the options and click Activate.

Enabling spoke-to-spoke communication - Step 15
Enabling spoke-to-spoke communication - Step 15

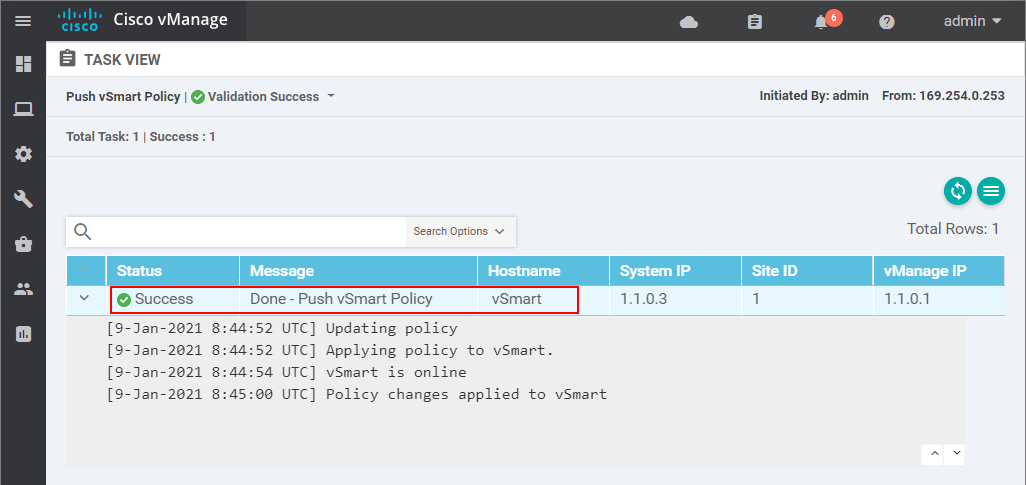

If the policy is pushed successfully to all vSmart controllers (in our case it is only one), we must see a status - Success.

Enabling spoke-to-spoke communication - Step 16
Enabling spoke-to-spoke communication - Step 16

Verifying the results of the policy

Before we edited and applied a new centralized control policy, the spoke vEdges had only had a default route pointing to the hub's tlocs.

vEdge-4# show ip routes vpn 1

VPN  PREFIX            PROTOCOL    TLOC IP        COLOR            ENCAP  STATUS
----------------------------------------------------------------------------------
1    0.0.0.0/0         omp         50.50.50.50    mpls             ipsec  F,S
1    0.0.0.0/0         omp         50.50.50.50    public-internet  ipsec  F,S
1    0.0.0.0/0         omp         50.50.50.51    mpls             ipsec  F,S
1    0.0.0.0/0         omp         50.50.50.51    public-internet  ipsec  F,S

However, we explicitly changed the next-hop tlocs of all OMP routes that are advertised to the spokes with the set tloc-list [list-name] action highlighted below.

sequence 11
 match route
  prefix-list ALL-ROUTES
 !
 action accept
  set tloc-list HUB-TLOCS
  !
 !

Now if we check the routing table of any of the spokes, we are going to see that the WAN edge router has successfully installed all OMP routes into its routing table.

vEdge-4# show ip routes vpn 1

VPN  PREFIX            PROTOCOL    TLOC IP        COLOR            ENCAP  STATUS
----------------------------------------------------------------------------------
1    0.0.0.0/0         omp         50.50.50.50    mpls             ipsec  F,S
1    0.0.0.0/0         omp         50.50.50.50    public-internet  ipsec  F,S
1    0.0.0.0/0         omp         50.50.50.51    mpls             ipsec  F,S
1    0.0.0.0/0         omp         50.50.50.51    public-internet  ipsec  F,S
1    172.16.50.0/24    omp         50.50.50.50    mpls             ipsec  F,S
1    172.16.50.0/24    omp         50.50.50.50    public-internet  ipsec  F,S
1    172.16.50.0/24    omp         50.50.50.51    mpls             ipsec  F,S
1    172.16.50.0/24    omp         50.50.50.51    public-internet  ipsec  F,S
1    172.16.60.0/24    omp         50.50.50.50    mpls             ipsec  F,S
1    172.16.60.0/24    omp         50.50.50.50    public-internet  ipsec  F,S
1    172.16.60.0/24    omp         50.50.50.51    mpls             ipsec  F,S
1    172.16.60.0/24    omp         50.50.50.51    public-internet  ipsec  F,S
1    172.16.80.0/24    omp         50.50.50.50    mpls             ipsec  F,S
1    172.16.80.0/24    omp         50.50.50.50    public-internet  ipsec  F,S
1    172.16.80.0/24    omp         50.50.50.51    mpls             ipsec  F,S
1    172.16.80.0/24    omp         50.50.50.51    public-internet  ipsec  F,S
1    172.16.90.0/24    omp         50.50.50.50    mpls             ipsec  F,S
1    172.16.90.0/24    omp         50.50.50.50    public-internet  ipsec  F,S
1    172.16.90.0/24    omp         50.50.50.51    mpls             ipsec  F,S
1    172.16.90.0/24    omp         50.50.50.51    public-internet  ipsec  F,S

And the ultimate test would be to do a traceroute from one spoke site toward another spoke. As you can see, the traffic is now going through the hub.

vEdge-4# traceroute vpn 1 172.16.80.1
Traceroute  172.16.80.1 in VPN 1
traceroute to 172.16.80.1 (172.16.80.1), 30 hops max, 60 byte packets
 1  172.16.50.3 (172.16.50.3)  19.753 ms  19.626 ms  19.561 ms
 2  172.16.80.1 (172.16.80.1)  77.535 ms  77.527 ms  77.513 ms

The full CLI representation of the applied centralized control policy is shown bellow:

policy
 control-policy TOPOLOGY-V3
    sequence 1
     match tloc
      site-list Hub
     !
     action accept
     !
    !
    sequence 11
     match route
      prefix-list ALL-ROUTES
     !
     action accept
      set
       tloc-list HUB-TLOCS
      !
     !
    !
  default-action reject
 !
 lists
  prefix-list ALL-ROUTES
   ip-prefix 0.0.0.0/0 le 32
  !
  site-list Hub
   site-id 50
  !
  site-list Spokes
   site-id 60
   site-id 70
   site-id 80
   site-id 90
  !
  tloc-list HUB-TLOCS
   tloc 50.50.50.50 color mpls encap ipsec
   tloc 50.50.50.50 color public-internet encap ipsec
   tloc 50.50.50.51 color mpls encap ipsec
   tloc 50.50.50.51 color public-internet encap ipsec
  !
 !
!
apply-policy
 site-list Spokes
  control-policy TOPOLOGY-V3 out
 !
!
