This lesson covers the topic of end devices, also referred to as endpoints in the CCNA blueprint. It focuses on the key concepts students need to understand about endpoints so they can "connect the dots" in later lessons.
What are end devices (endpoints)?
First, let's start with the fact that we are going to use the terms "end devices" and "endpoints" interchangeably in this lesson. Basically, both mean the same thing. Sometimes, we will also throw in the term "end hosts" as well.
End devices refer to all computers and gadgets located at the edge of the network. Common ones include PCs and laptops, servers (web, mail, file, database), mobile devices (smartphones and tablets), VoIP phones, printers, and Internet of Things (IoT) devices such as cameras and sensors.
In our CCNA learning path, we primarily use the icons shown above to refer to endpoints connected to the network.
Endpoints are source and destination of traffic
Now let's focus a bit more on the term "endpoints" itself. Why does Cisco choose to use exactly this term in the CCNA blueprint?

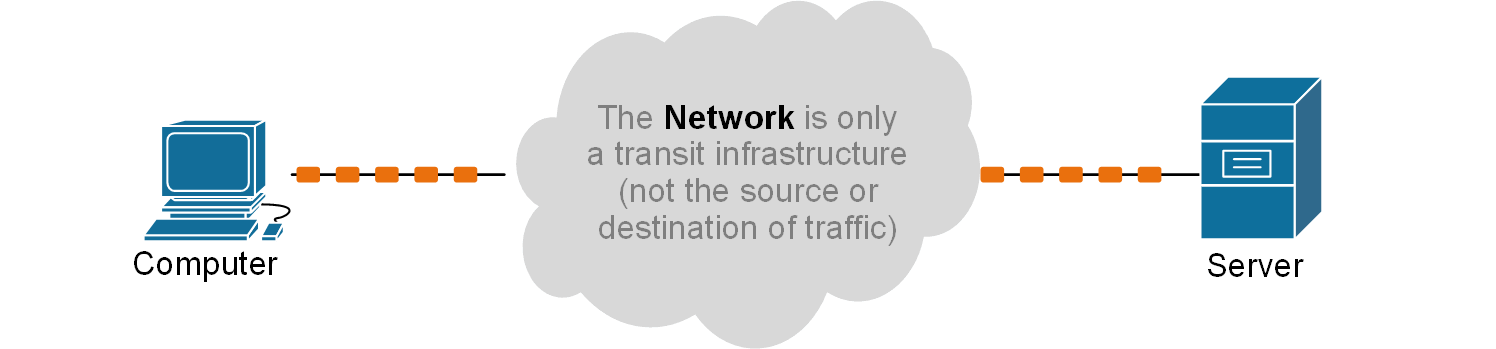

Well, they want to emphasize the fact that end devices are the source and destination of traffic. Traffic originates and ends at an end device (hence the term end-point). In that sense, the network just serves as a transit infrastructure that transports data between endpoints, as shown in the diagram below.
Think of the network as a nationwide road network. The roads and highways are essential, but nobody travels just to “be on the road.” You don’t get in your car and say, “Today, I want to reach Road 45.” Instead, you want to visit a friend, go to a store, or reach a workplace. The road is only the medium that gets you there.
Networks are the same. Routers, switches, cabling, and wireless links are like highways, roads, and crossings. They make movement possible, but they are not the source or destination of traffic. The actual destinations are the endpoints—laptops, web servers, printers, phones, or other connected gadgets, as shown in the diagram above.
Endpoints have one or more network cards (NICs)
Each endpoint connects to the network by Network Interface Cards (NICs). However, one of the most common assumptions that CCNA students immediately make is that one end device has one NIC and one network attachment - typically a cable to the closest network device or a Wi-Fi connection to the closest wireless router.
However, this is often the case, but not always. Some devices have more than one network interface (NIC). For example, a server can have two NIC cards connected simultaneously to two separate networks, as shown in the diagram below.
This shift in perspective opens the door for so many subsequent questions. For example, if a server has two NICs connected to two networks, how does it know where to send different kinds of traffic? How does it know to send the Facebook traffic over the Internet and the business-related traffic to the corporate network? This leads us to the next important aspect of endpoints.
Routing starts at endpoints
Remember - every endpoint has routing logic. It doesn't matter if it is a laptop or a simple gadget connected to the WiFi. It has a routing table. It is usually straightforward, but it still involves routing. Most hosts use a routing table with at least a local network entry and a default route that points to the default gateway.
But hosts can have more than just a default gateway. A host can have static routes. It can have a VPN that pushes routes to it. It can also use multiple interfaces with different routing behaviors, as shown in the diagram below.
For example, the server S1 has three NIC cards connected to two separate networks. To use them, a network administrator has programmed the following logic.
Rule 1: Send corporate traffic over NIC-1.
Rule 2: Send Internet traffic over NIC-2.
Rule 3: If NIC-2 goes down, send Internet traffic over NIC-3.This is the concept of how end devices determine the first network hop where to send the traffic.
KEY POINT: Routing starts at endpoints. They choose the first hop in the network.
The following code block shows a real output of a Windows 11 workstation's interface list and routing table.
C:\> route print
===========================================================================
Interface List
1...........................Software Loopback Interface
2...00-15-5D-01-02-11......Intel(R) Ethernet NIC #1
3...00-15-5D-01-02-12......Intel(R) Ethernet NIC #2
4...00-15-5D-01-02-13......Intel(R) Wireless NIC #3
===========================================================================
IPv4 Route Table
===========================================================================
Active Routes:
Network Destination Netmask Gateway Interface Metric
0.0.0.0 0.0.0.0 3.17.5.1 3.17.5.5 35
0.0.0.0 0.0.0.0 144.1.6.1 144.1.6.13 200
10.0.0.0 255.0.0.0 10.1.1.1 10.1.1.55 25
10.1.1.0 255.255.255.0 On-link 10.1.1.55 35
10.1.1.55 255.255.255.255 On-link 10.1.1.55 35
10.1.1.255 255.255.255.255 On-link 10.1.1.55 35
3.17.5.0 255.255.255.0 On-link 3.17.5.5 45
3.17.5.5 255.255.255.255 On-link 3.17.5.5 45
3.17.5.255 255.255.255.255 On-link 3.17.5.5 45
144.1.6.0 255.255.255.0 On-link 144.1.6.13 25
144.1.6.13 255.255.255.255 On-link 144.1.6.13 25
144.1.6.255 255.255.255.255 On-link 144.1.6.13 25
127.0.0.0 255.0.0.0 On-link 127.0.0.1 331
127.0.0.1 255.255.255.255 On-link 127.0.0.1 331
127.255.255.255 255.255.255.255 On-link 127.0.0.1 331
===========================================================================
<lines omitted for brevity>Addressing and identification of end devices
Another important aspect of endpoints is that they participate in addressing. Every device connected to the network needs a unique identity.
- At Layer 2, each NIC interface has a MAC address. The MAC is hardware-based and unique per port.
- At Layer 3, each NIC interface has an IP address. IP addresses can be static or assigned by a DHCP server.
Additionally, modern identity can also include hostnames, device certificates, and OS-based signatures. These identifiers associate a device's identity with a security context.
For CCNA, we focus on MAC addresses, IP addresses, and hostnames. They are the primary identifiers you will use when troubleshooting issues related to end hosts.
Endpoint security
Lastly, let's touch on the topic of security. Endpoints are the most common targets of cyber attacks. Additionally, they are the hardest to protect because they move between trusted and untrusted networks. They can be stolen or misconfigured.
KEY POINT: Corporate security begins at the endpoints.
As a CCNA student, you should be aware that the network complements endpoint security. Some of the common security measures that we implement on the network include:
- DHCP snooping, dynamic ARP inspection, and IP source guard to limit attacks that originate from endpoints.
- 802.1X to force device authentication before network access.
- VLANs to segment different device types.
- ACLs and firewall rules to block untrusted traffic.
For CCNA, you should know that most security incidents start with a misconfigured or compromised end device or application.
Key takeaways
Endpoints are the start and end of all communication. They create and consume packets. They decide the first routing hop. That first hop might be the default gateway or a different Layer 3 next hop from a static route or VPN. Endpoints maintain routing and ARP tables. They have MAC, IP, and hostname identities. They are common security targets and must be secured and monitored.
Remember that switching and routing begin at the edge, not at switches and routers.
